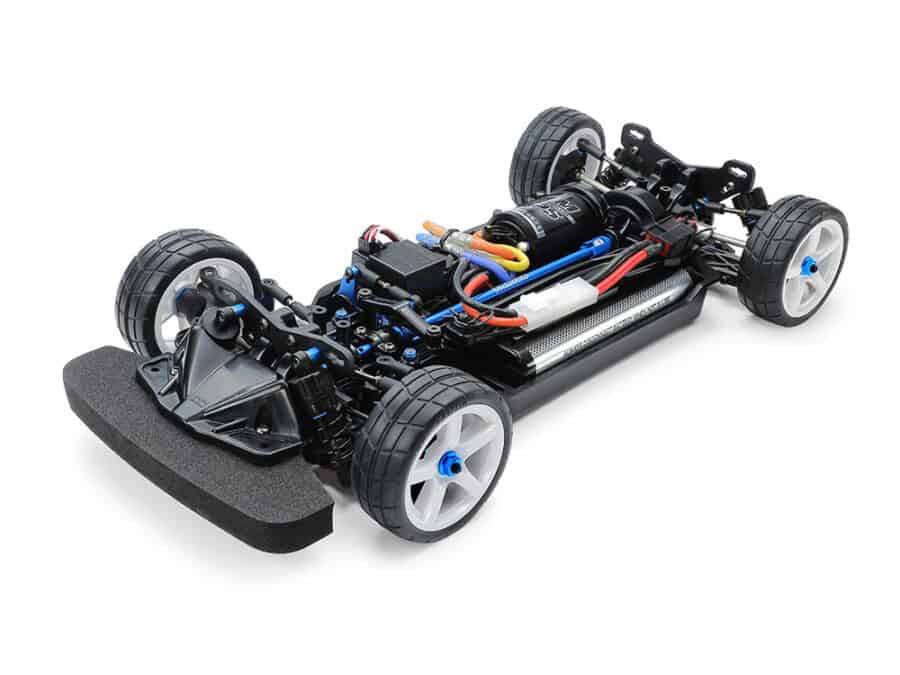

Name: 田宫 58720 1/10 RC遥控车 TT-02 Type-SRX 底盘套装
SKU: TA 58720
Price: 1900.00 HKD
Availability: InStock

描述

田宫 58720 1/10 RC遥控车 TT-02 Type-SRX 底盘套装

【发挥潜能，为赛事备战】

本型号是于4WD房车底盘的基础 – TT-02之上装配上多种改造零件，强化了行走性能和设置潜力的比赛志向型号。驱动系统方面，前轮配备直连齿轮和双联式传动轴，后轮则採用注油式齿轮差速器减轻动力流失。悬挂系统使用了操控性能优秀的TRF420悬挂臂，后轮则採用推压式可调节悬挂座。透过27T铝合金马达齿轮和68T减速齿轮的组合形成6.55:1的齿轮比，是最适合参与田宫GP锦标赛或挑战赛的底盘套件。

【Racy TT-02】

This kit sees the versatile beginner chassis TT-02 paired with a host of Hop-Up Options and other parts to raise its racing ability and tuneability. The efficient drivetrain employs a front direct coupling and double cardan drive shafts, with a rear oil gear differential. TRF420 design suspension arms give great feedback during your drive, and the rear suspension can be fine-tuned via its adjustable mount. Its 27T pinion and 68T spur gears give a gear ratio of 6.55:1.

【基本规格】

全长 361mm, 阔 183mm
轴距 258mm
浴缸型底架
驱动方式：直置马达．轴驱动4WD
差速器：直连齿轮 (前)．注油式齿轮差速器 (后)
转向装置：3分割鬆紧扣式
悬架系统：4轮双横臂悬架式
避震系统：CVA注油式 (前&后)
齿轮比：标准配置6.55:1 (27T马达齿轮与68T减速齿轮的组合)
马达：540型 (需另购)
速度控制：ESC电子调速器形式 (需另购)

【Specifications】

Length: 361mm, width: 183mm
Wheelbase: 258mm
Bathtub-type frame
Longitudinal motor, Shaft-driven 4WD
Front direct coupling, rear oil gear differential
3-piece steering tie-rod
4-wheel double wishbone suspension
CVA oil dampers
Gear ratio = 6.55:1 (with kit standard 27T pinion and 68T spur gears)
Type 540 motor (sold separately)
Electronic Speed Controller (ESC) is sold separately.

【底盘特色】

1/10的组装式模型遥控车底盘。
前置ITEM 22047 连结式制动轮及后置ITEM 22049 注油式齿轮差速器。
使用TRF420的4轮独立双横臂悬挂系统。
驱动轴接头加入树脂製部件以减少摩耗。
ITEM 22054 双联式传动轴提供稳定的转向和入弯抓地力。
后置驱动轴是为本型号新设计的39mm型。
配备27T马达齿轮及高速齿轮组(齿轮比6.55:1)。
附有铝合金舵机保护臂。
配备密封球轴承。
附有TT-02 Type-SRX底盘专用便携箱
车壳﹑电池﹑车轮﹑舵机﹑马达﹑ESC及遥控装置需另购。

【Chassis Features】

1/10 Scale R / C Chassis Mounting Kit.
Items 22049 oil differential and 22047 rigid front pole ensure easy assembly and stable driveability.
This frame kit features a reliable 4 wheel independent double wishbone suspension used in the TRF420 frame to ensure an effective setup.
Center joints have plastic parts in the joint sections of stainless steel pins and aluminum joints to limit wear of parts.
Universal joint (code 22054) provides stable steering and cornering grip for superior performance during racing.
The rear driveshafts have a size of 39mm, specific for this frame.
High speed gears and 27T sprockets (transmission ratio: 6.55: 1) are included as standard parts of the kit.
The included servo saver ensures an ideal steering angle and to limit damage to the steering servo.
Features shielded ball bearings.
Comes with a dedicated carrying case for the TT-02 Type-SRX chassis.
Please note that the body, battery, motor, tires and R / C system are not included.
